PART ONE: The Puzzle

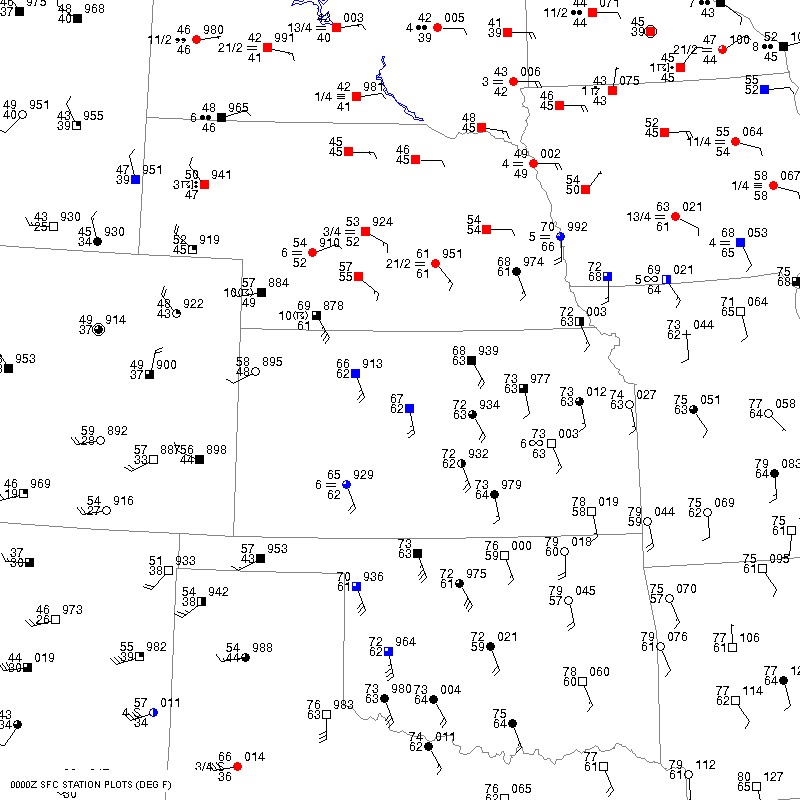

A forecast is literally impossible without a detailed analysis of the current state of the atmosphere. The following puzzle is actual data for a day in April 2001, and you’ll find fronts and important weather features.

Draw isobars every four millibars (992, 996, 1000, 1004, etc) using the plot model example at the lower right as a guide. If we use “xxx” to represent the plotted pressure, the actual millibar value is 10xx.x mb if xxx is below 500, and if above 500 the value is 9xx.x mb. For instance, “027” represents 1002.7 mb and “892” represents 989.2 mb. Naturally when a station shows “073” and a nearby one shows “086”, the 1008 mb isobar will be found halfway between the stations. Locate and sketch in fronts. By convention they are found on the warm side of strong temperature contrasts. There may be other clues, such as a difference in wind direction, wind speed, and observed weather.




Click to enlarge














* * * * *

Scroll down for the solution

* * * * *




































PART TWO: The Solution

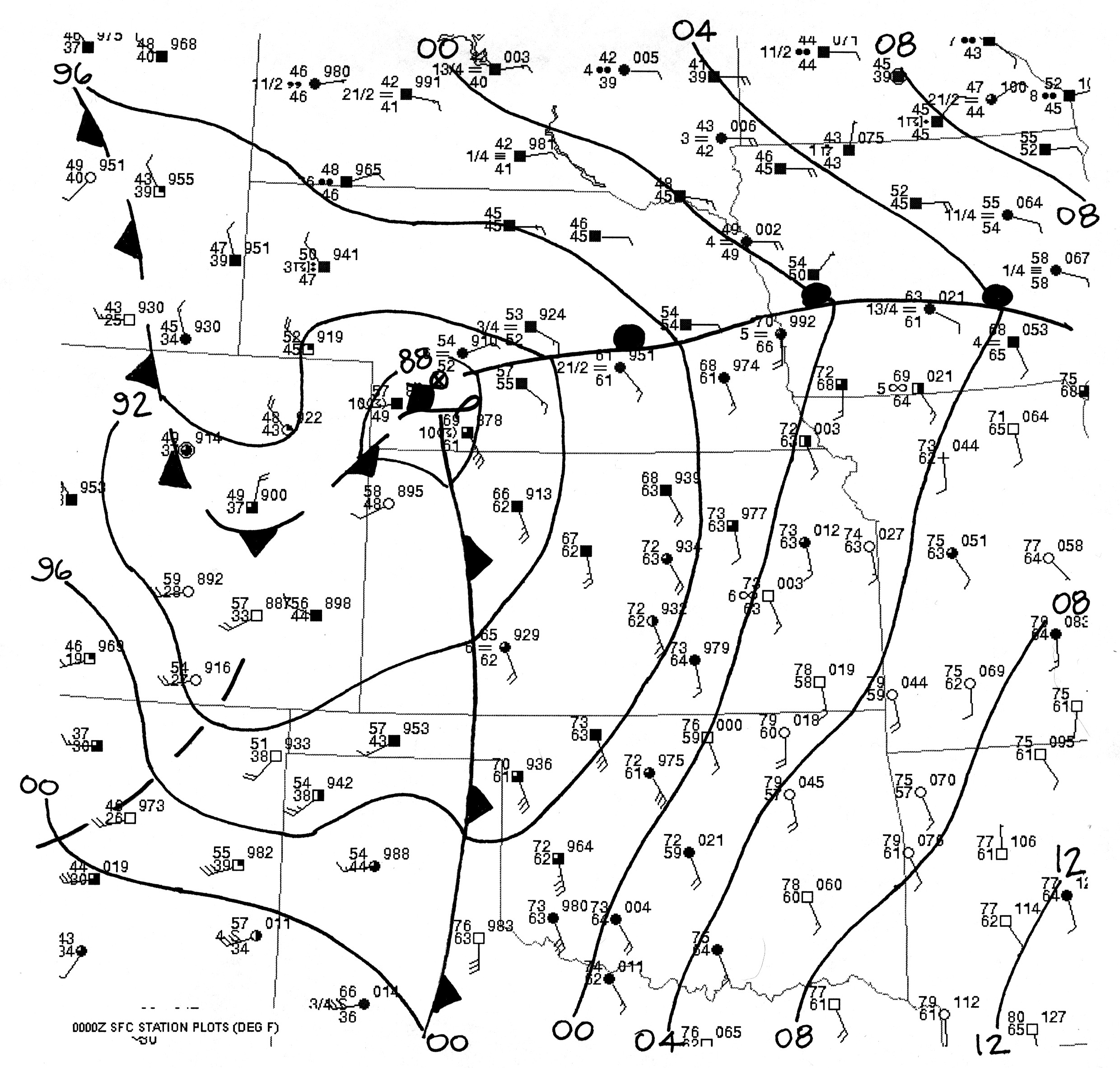

April 6, 2001 was a day where strong upper-level dynamics in the southwestern United States led to rapid pressure falls and development of a vigorous frontal system in the central Plains. By sketching in isobars you will have found an area of deep low pressure in southwest Nebraska.

By looking for a contrast between warm and cool air, you will have found a sharply-defined warm front in Nebraska and Iowa. It’s indicated by the line with round semicircles pointed into the cold air mass, showing that warm air is replacing cold air. It divides 70-degree air from frigid, cloudy 40-degree air further north.

You will also have found a cold front, shown here extending from western Kansas into Texas. The sharp barbs point into the warm air mass, showing that cold air is replacing warm air. There’s a weak cold front nosing southward into eastern Colorado. This is a common occurrence when Great Plains cyclones draw colder Canadian air southward through the high Plains region. A pressure trough is shown in New Mexico, indicating an axis of low pressure but no air mass contrast.
