Extreme Heat -- Labor Day 2000

The photograph at left shows Houston, Texas on the morning that it shattered its all-time high temperature. Throughout the state several all-time highs were broken. These include 109°F at Houston, 112°F at Fort Worth (Meacham and Alliance), and 107°F at Corpus Christi. The all-time record high was tied at Victoria (110°F).

112°F was recorded at College Station. 111°F was recorded at Dallas-Fort Worth International, Mineral Wells, Waco, and Wichita Falls. 110°F was recorded at Arlington, Corsicana, Dallas Love, Lufkin, Terrell, Alice, Austin, Conroe, Huntsville, New Braunfels, and Victoria.

All maps were created after-the-fact with saved METAR and upper air data using Digital Atmosphere. Digital Atmosphere is available for download on this site.

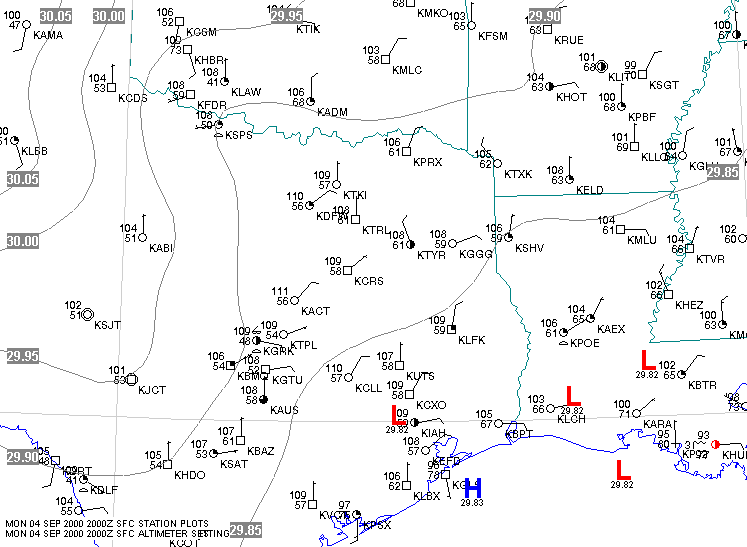

Surface map, 3 pm CDT
Low pressure and weak winds are noted across much of the eastern half of Texas.

(Click on the map to enlarge it)

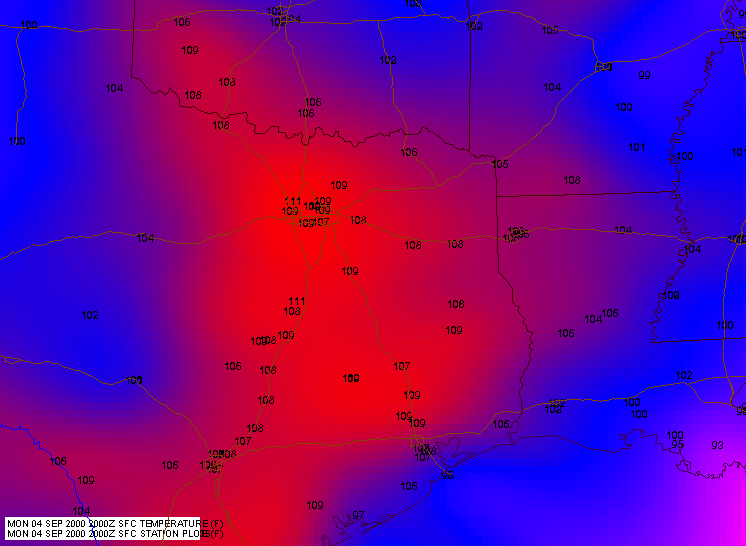

Temperature map, 3 pm CDT
Temperatures ranged near 110 degrees through a broad area of eastern Texas.

(Click on the map to enlarge it)

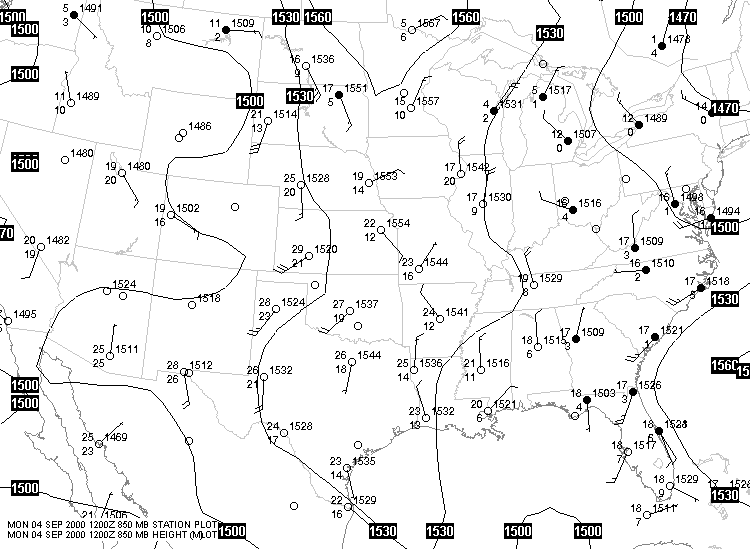

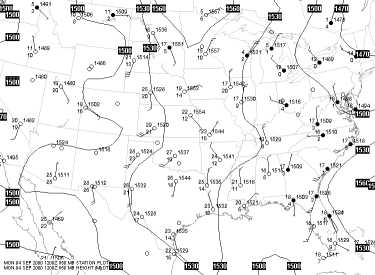

850 mb chart, 7 am CDT
The 850 mb (5000 ft) chart showed high pressure centered on eastern Texas, with temperatures near 25°C. This is very warm for 850 mb and is supportive of extremely hot temperatures.

(Click on the map to enlarge it)

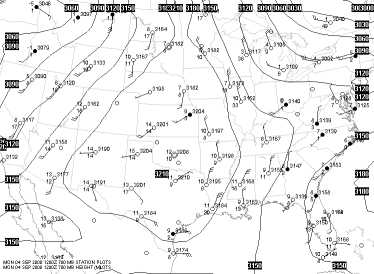

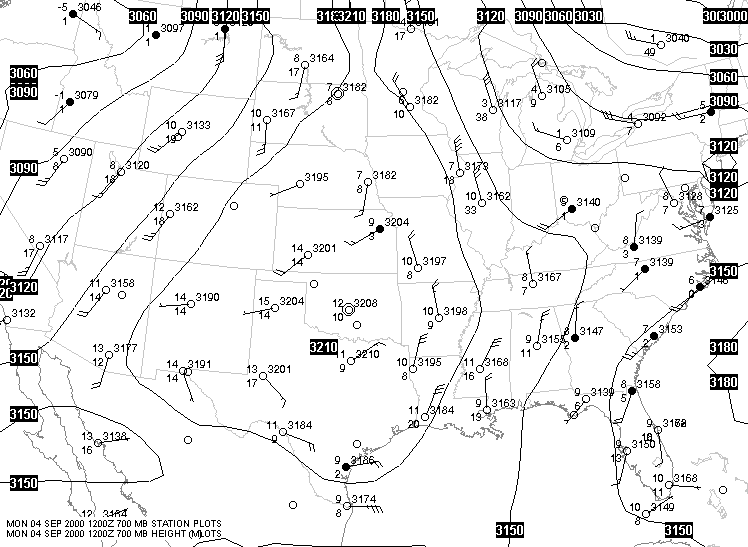

700 mb chart, 7 am CDT
The 700 mb (10000 ft) chart also showed high pressure, which was centered on north Texas. Temperatures were in excess of 10°C. The warm 11°C reading in SW Louisiana and N Texas indicated where the strongest heating would take place. The warmer readings seen in west Texas are associated with the higher elevations and are not as indicative.

(Click on the map to enlarge it)

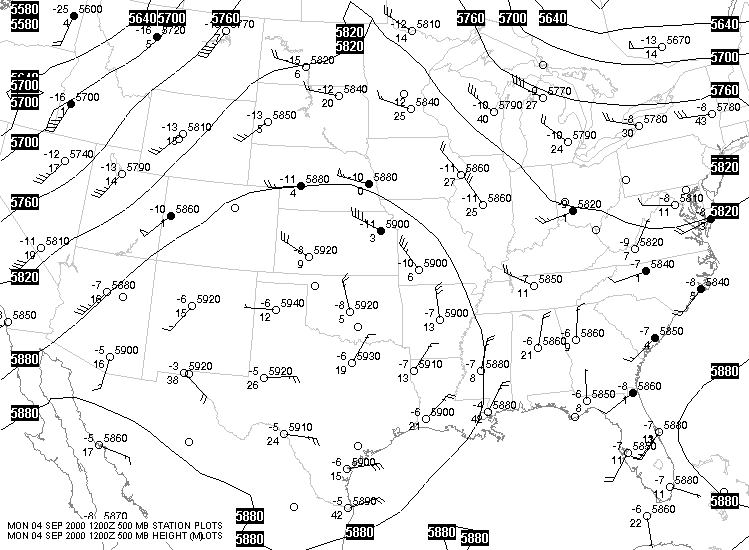

500 mb chart, 7 am CDT
The 500 mb (18000 ft) showed a large subtropical high centered on west Texas. Large upper-level highs and ridges tend to be associated with above-average temperatures.

(Click on the map to enlarge it)

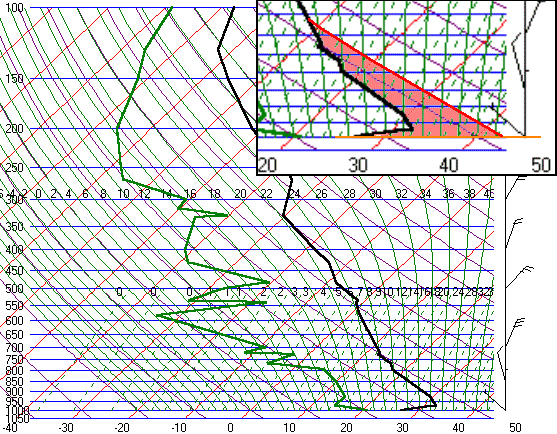

Lake Charles, Louisiana sounding, 7 am CDT
For those familiar with soundings, this is one from near the Houston area. Given a specific amount of solar heating, the geometric area between the temperature profile and the maximum temperature's dry adiabat is roughly constant. This region is shaded red in the inset. This concept of heating "area" can be used to get an estimate of the afternoon's high temperature.

(Click on the map to enlarge it)

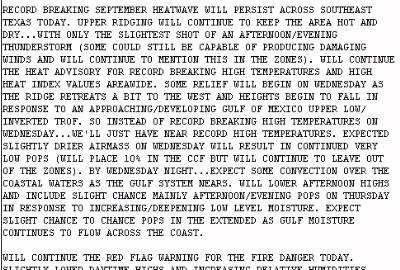

Text bulletins
Click for the following products (note that the contents are in reverse chronological order):
  • Forecast discussions
  • Climate summaries
  • Special weather statements
  • Public weather statements
  • Special weather statements

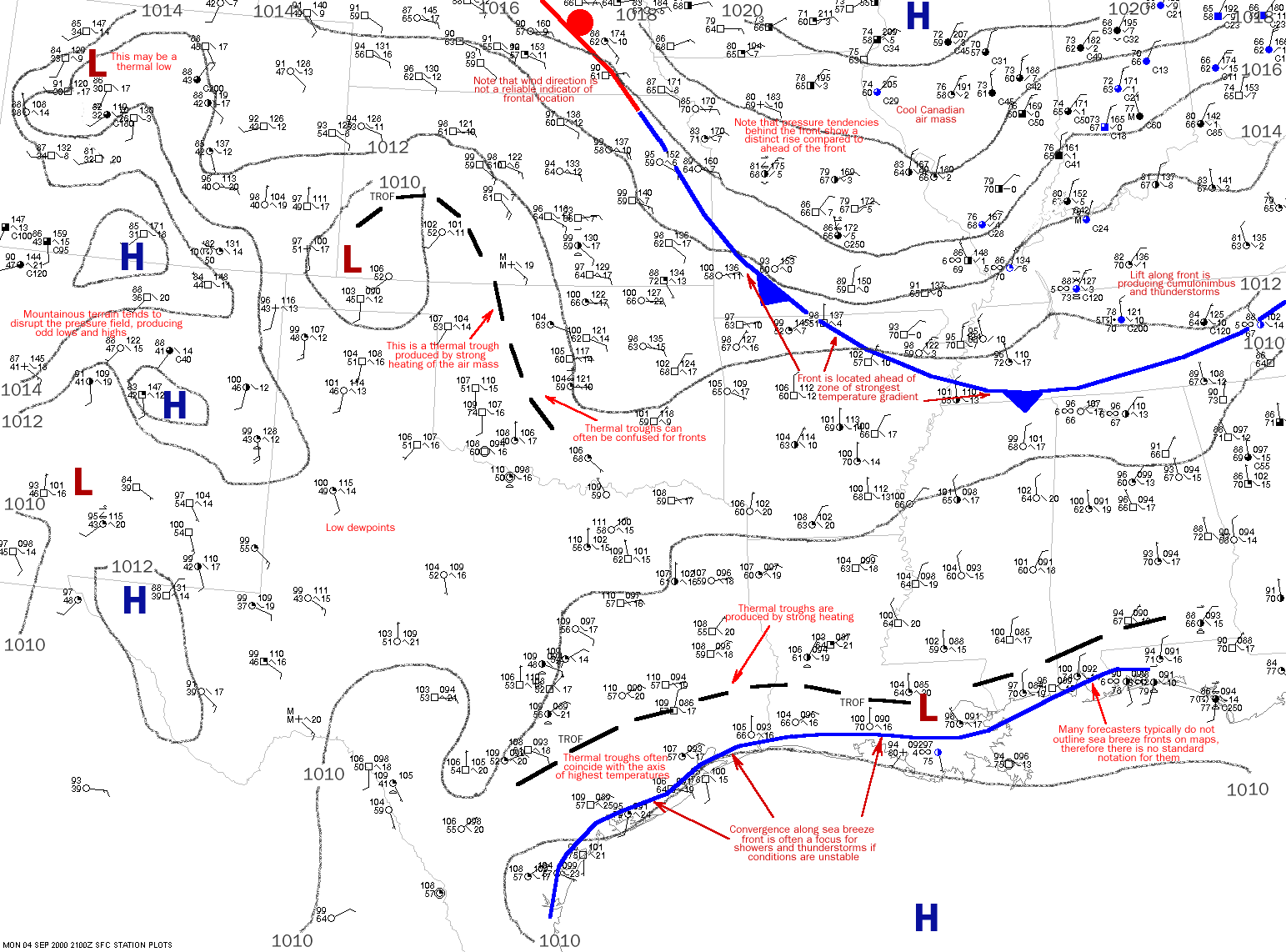

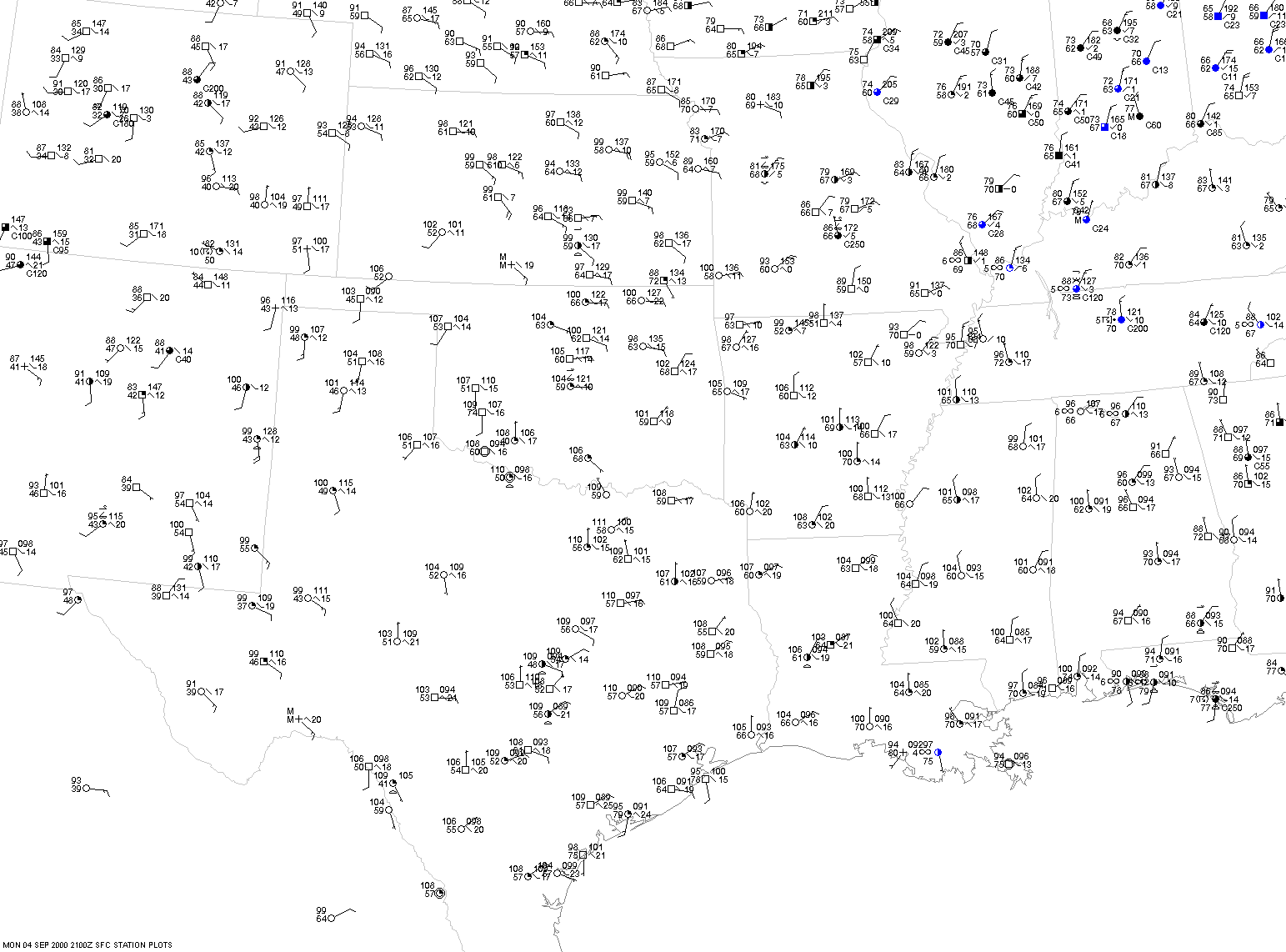

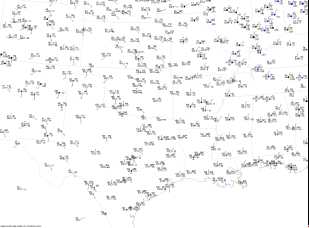

    • You be the forecaster! Presented here is a large map that you can analyze. Print it out (if your browser doesn't do a good job, save the map to disk and open it with a good paint program, then print it). Draw isobars every 2 mb and locate all important fronts and boundaries. When you're done, click here for a solution as well as some interesting notes and annotations on what's going on.

    (Click on the map to enlarge it)
